Selection Cut-off Saws & Concrete Saw

TS 420 A

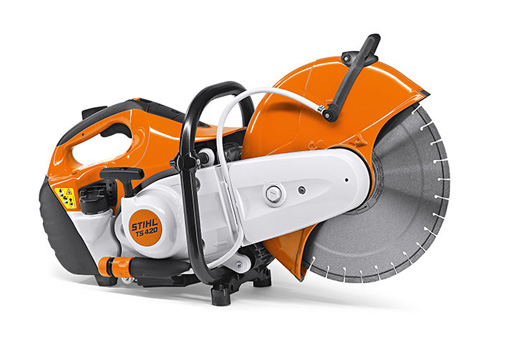

STIHL TS 420 A Cut-Off Saw

General

TS 420 A

STIHL cut-off saws are tailored to the needs of professionals and always offer that little bit extra for their users, e g. electronic water control (A) for dust suppression at the touch of a button. With so much power, stone isn't the only thing that gives in.Compact and robust 3.2 kW cut-off saw with a 350 mm cutting wheel for use on all types of jobs. The innovative long-life air filter system with cyclone air routing ensures an extremely long filter service life and increases service intervals. Low-vibration levels make working with this model less strenuous. Can be operated by hand or together with an FW 20 cart.

Details:
-


More pictures

Versions

Price

*Prices valid from 01/09/14 to 09/11/14.
STIHL stores are operated as independent businesses. The products described in this website may not be on display or available at each STIHL store. STIHL reserves the right to change pricing at any time without notice.


The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Product variations

Technical data

TS 420 A

Technical data

Displacment cc 66.7
Power output kW/bhp 3.2/4.4
Weight kg 1) 10.1
Cut-Off Wheel mm 350

1) without fuel and cutter blade

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Features

TS 420 A

Standard features

  • STIHL 2-MIX Engine Zoom
    STIHL 2-MIX Engine

    The new 2-MIX engine features an advanced stratified charge system that boosts power, whilst reducing consumption and pollution, significantly lowering unburned hydrocarbons in the exhaust. The result is a cleaner, more fuel efficient engine

  • Long-life air filter system (cyclone air routing) Zoom
    Long-life air filter system (cyclone air routing)

    The long-life air filter system with cyclone air routing ensures that 80% of dust particles are separated and transported out into the surrounding air. In turn this extends the cleaning intervals for the foam pre-filter.

  • STIHL Anti-vibration system Zoom
    STIHL Anti-vibration system

    Buffer and spring elements reduce the transmission of engine vibrations to the operator's arms and hands. This makes free-hand cutting much less strenuous.

  • Manual fuel pump (Purger) Zoom
    Manual fuel pump (Purger)

    If your petrol driven equipment has a manual fuel pump, you can reduce the number of starting strokes by about 40% if you operate the pump a few times before starting up. This speeds up the supply of sufficient fuel to start up.

  • Compensator Zoom
    Compensator

    This controller in the carburettor prevents the fuel-air mixture getting richer as the air filter becomes clogged. The correct quantity of fuel is delivered to the carburettor depending on the quantity of air passing through the air filter. This keeps the fuel/air ratio in the combustion mixture constant and hence also the engine power. The filter doesn't need to be cleaned until an appreciable drop in power occurs.

  • Decompression valve Zoom
    Decompression valve

    The decompression valve is part of the easy start-system. The valve reduces pressure in the cylinder which means less effort is required to start the engine.

  • Ergonomic grip position Zoom
    Ergonomic grip position

    The modern, ergonomic design allows each user to work with an optimal grip position. The loop handle facilitates excellent cutting comfort in any working position.

Additional features

  • STIHL ElastoStart Zoom
    STIHL ElastoStart

    This standard or retrofitted starter grip allows smooth starting without abrupt power Peaks, making starting the machine considerably easier.

  • Cut-off saw cart Zoom
    Cut-off saw cart

    Ideal wherever edges have to be cut with particular precision, where a certain cutting depth needs to be maintained, or for cutting long, linear stretches.

We present some Product Technology features in product technology .

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Accessories

TS 420 A

Accessories

    • Wheel kit Zoom
      Wheel kit

      Attachment kit for the front foot. The cut-off machine is supported on flat surfaces. Smooth-running wheels facilitate moving the tool. For TS 420, TS 500i, TS 700 and TS 800.

    Versions

    Price

    *Prices valid from 01/09/14 to 09/11/14.
    STIHL stores are operated as independent businesses. The products described in this website may not be on display or available at each STIHL store. STIHL reserves the right to change pricing at any time without notice.

    • FW 20 cart with attachment kit & watertank Zoom
      FW 20 cart with attachment kit & watertank

      The STIHL FW 20 cart turns all hand-operated STIHL cut-off saws into easily manoeuvrable cutting machines. Convenient depth adjustment allowing the cut-off saw to be easily mounted on the cart and cut height adjusted by means of the upper handle. Suitable for all hand-held STIHL cut-off machines. An attachment kit with a quick-mounting system and water tank is included.

    Versions

    Price

    *Prices valid from 01/09/14 to 09/11/14.
    STIHL stores are operated as independent businesses. The products described in this website may not be on display or available at each STIHL store. STIHL reserves the right to change pricing at any time without notice.

    • Quick-mounting system conversion kit Zoom
      Quick-mounting system conversion kit

      Conversion kit with quick release system for the FW 20. For TS 400, TS 420, TS 500i, TS 700 and TS 800.

    Versions

    Price

    *Prices valid from 01/09/14 to 09/11/14.
    STIHL stores are operated as independent businesses. The products described in this website may not be on display or available at each STIHL store. STIHL reserves the right to change pricing at any time without notice.

    • Cutting direction indicator Zoom
      Cutting direction indicator

      Accessory for FW 20 cart.

    Versions

    Price

    *Prices valid from 01/09/14 to 09/11/14.
    STIHL stores are operated as independent businesses. The products described in this website may not be on display or available at each STIHL store. STIHL reserves the right to change pricing at any time without notice.

    • Pressurised water container Zoom
      Pressurised water container

      Pressurised water container for use with all cut-off saws. The 10 litre capacity pressurised water container for mobile water supply ensures a clean wet cut without creating dust, even on construction sites with no water connection. Not recommended for the GS 461.

    Versions

    Price

    *Prices valid from 01/09/14 to 09/11/14.
    STIHL stores are operated as independent businesses. The products described in this website may not be on display or available at each STIHL store. STIHL reserves the right to change pricing at any time without notice.

    • Multispray Zoom
      Multispray

      Multi function spray that cleans a number of tools and leaves a protective film that does not harden on the surface and thereby protects against corrosion. Rotating parts are lubricated. An essential all-rounder for every workshop. 400ml spray can.

    Versions

    Price

    *Prices valid from 01/09/14 to 09/11/14.
    STIHL stores are operated as independent businesses. The products described in this website may not be on display or available at each STIHL store. STIHL reserves the right to change pricing at any time without notice.

    • Varioclean Special Cleaner Zoom
      Varioclean Special Cleaner

      Multipurpose biodegradable machine and parts cleaner. Water based, biodegradable, alkaline detergent specifically for dissolving and removing organic oil residues and for cleaning air filters and housings.

    Versions

    Price

    *Prices valid from 01/09/14 to 09/11/14.
    STIHL stores are operated as independent businesses. The products described in this website may not be on display or available at each STIHL store. STIHL reserves the right to change pricing at any time without notice.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
