Selection COMPACT Chainsaws

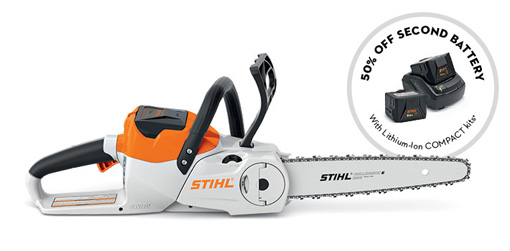

MSA 140 C-B Skin Only

Perfect for property maintenance

General

Enlarge
More pictures

Lightweight cordless chainsaw for grounds maintenance and straightforward but skilled manual jobs. 25% more cutting performance compared to the MSA 120 C-B. Soft handle, quick and convenient chain change process due to STIHL Quick Chain Tensioning, QuickStop Super chain brake, oil tank with transparent viewing window, high cutting performance due to a 1/4" PM3 saw chain. Batteries and chargers can be purchased separately or as a combined kit with the skin.

Versions

Price

*Prices are valid from the 01/01/2020 to 29/02/2020.
STIHL stores are operated as independent businesses. The products described in this website may not be on display or available at each STIHL store. STIHL reserves the right to change pricing at any time without notice.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Technical data

Technical data

STIHL Oilomatic saw chain pitch/type Picco Micro 3 (PM3)
Rated voltage V 36
Rated voltage V 36
Weight without battery kg 2.2
Sound pressure level dB(A) 1) 83
Sound power level dB(A) 2) 94
Vibration value, left m/s ² 3) 4.3
Vibration value, right m/s ² 3) 4.8
Rollomatic E, cutting length cm 30
Saw chain pitch 1/4"P
Battery life time AK 10 min 4) 15
Battery life time AK 20 min 4) 35
Battery life time AK 30 min 4) 45

1) K-factor according to DIR 2006/42/EC = 2.5 (dB (A))
2) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3) K-factor according to DIR 2006/42/EC = 2m / s ²
4) Battery life are approximate and may vary depending on application

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Features

Standard features

  • STIHL Chain Quick Tensioning (B) Zoom
    STIHL Chain Quick Tensioning (B)

    The STIHL chain quick tensioning system (B) makes it very easy to tension the chain. Just release the sprocket cover and turn the knob to set the optimum tension. No tools needed.

  • Toolless filler cap Zoom
    Toolless filler cap

    The tank can be filled quickly and easily using the toolless filler cap.

  • Control handle Zoom
    Control handle

    The soft black component on the rear control handle ensure a safe and secure grip in any situation. The control lever must be released using the lock button on the side.

  • EC Motor Zoom
    EC Motor

    The EC motor gets up to 55% more power from the battery and protects him there - because the battery life increases up to 70%. He also convinces with low weight, compact dimensions and almost wear-free mechanism.

  • STIHL Ematic-System Zoom
    STIHL Ematic-System

    The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system can reduce bar oil consumption up to 50%.

  • Two-handled operation Zoom
    Two-handled operation

    The ergonomically shaped handle and rear control handle with comfortable soft-grip component ensure safe working in all operating positions.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Documents

Owners manuals and safety brochures

STIHL MSA 120 C, MSA 140 C (GB) Download PDF, 3.6 MB
STIHL MSA 140 C (GB) Download PDF, 3 MB

Notes:

  • STIHL online owner’s manuals are usually for the latest versions of the machine. Your product may be a slightly older production model but the manual will still be appropriate for the relevant model number.
  • The languages ​​contained in the document are also displayed in brackets, for example (GB) = English.
