When using other brands of battery tools, the performance can sometimes decrease during work as the battery discharges. This isn't the case with STIHL battery-powered tools. Thanks to the intelligent electronics, your tool will work with consistently high power across the entire battery charge, until there is no energy left in the battery.
AP 500 S battery
Select item
Available to buy from STIHL Approved Dealers Click on the button above to find your nearest one
- Product Details
- Powerful and durable lithium-ion battery
- 337 Wh of battery power at a weight of 2.0 kg
- Compatible with all battery power tools in the STIHL AP-System
- Increased number of charging cycles thanks to power laminate technology
- Bluetooth connected - Digital recording of the battery status and its use thanks to STIHL connected
- 4 practical LEDs for indicating charging status and power content
- Owners manuals
Find here the owners manual
Technical details
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Battery cell technology | LITHIUM-ION |
| Battery weight | 2 kg |
| Rated capacity as per IEC 61960 | 8.80 A·h |
Features

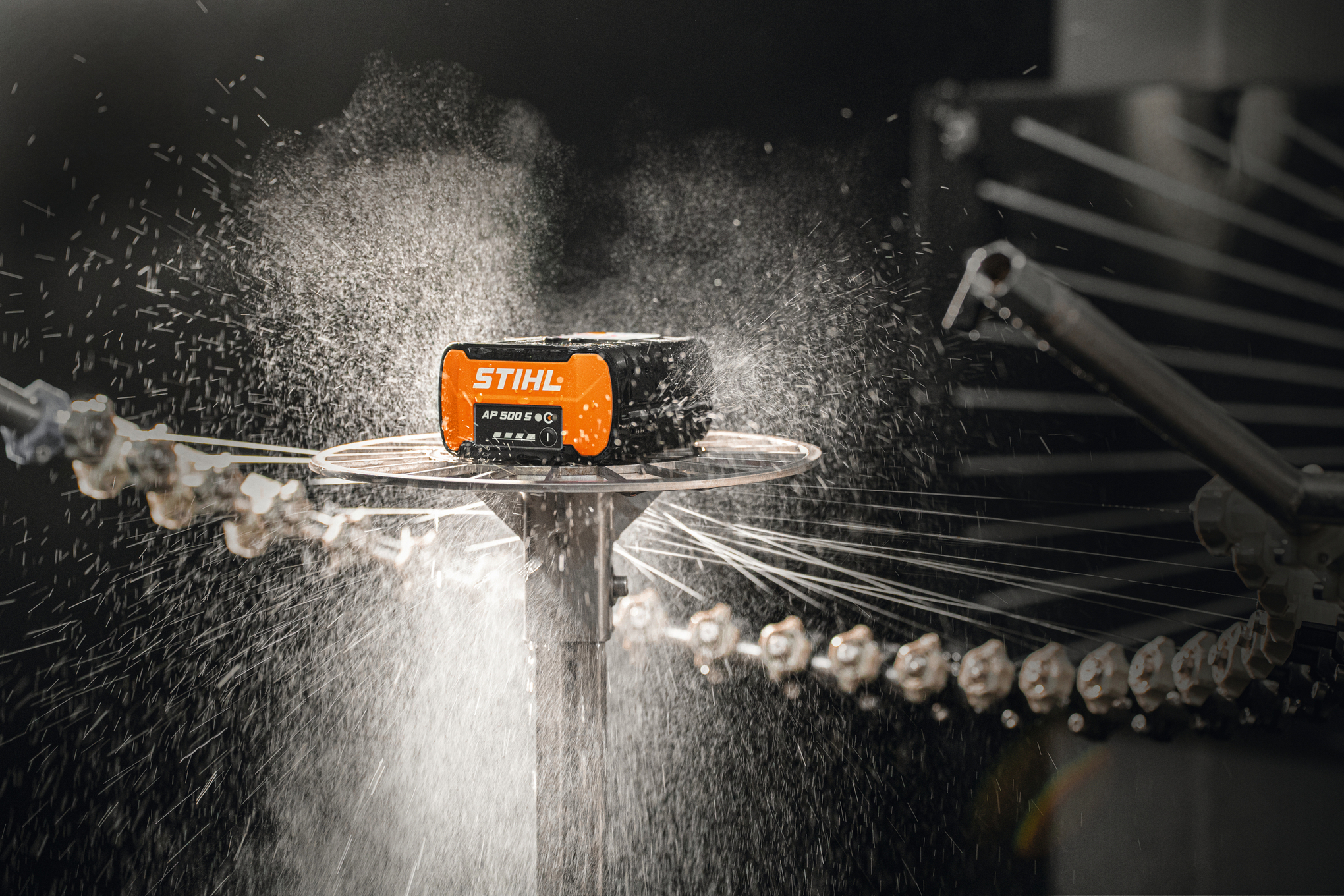

SPLASHWATER PROTECTION. The IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX4 certifies protection against splashwater from all sides. Battery-powered tools with this certification are therefore designed for daily use, even in rainy conditions.
AP 500 S battery: use AP system professional power tools more efficiently with STIHL connected
The STIHL AP system supports you in your daily professional gardening, landscaping and tree maintenance tasks. The matching AP lithium-ion batteries help you to use STIHL battery power tools even for demanding tasks. 4 LED lights keep you informed of the charge level of the battery at all times.

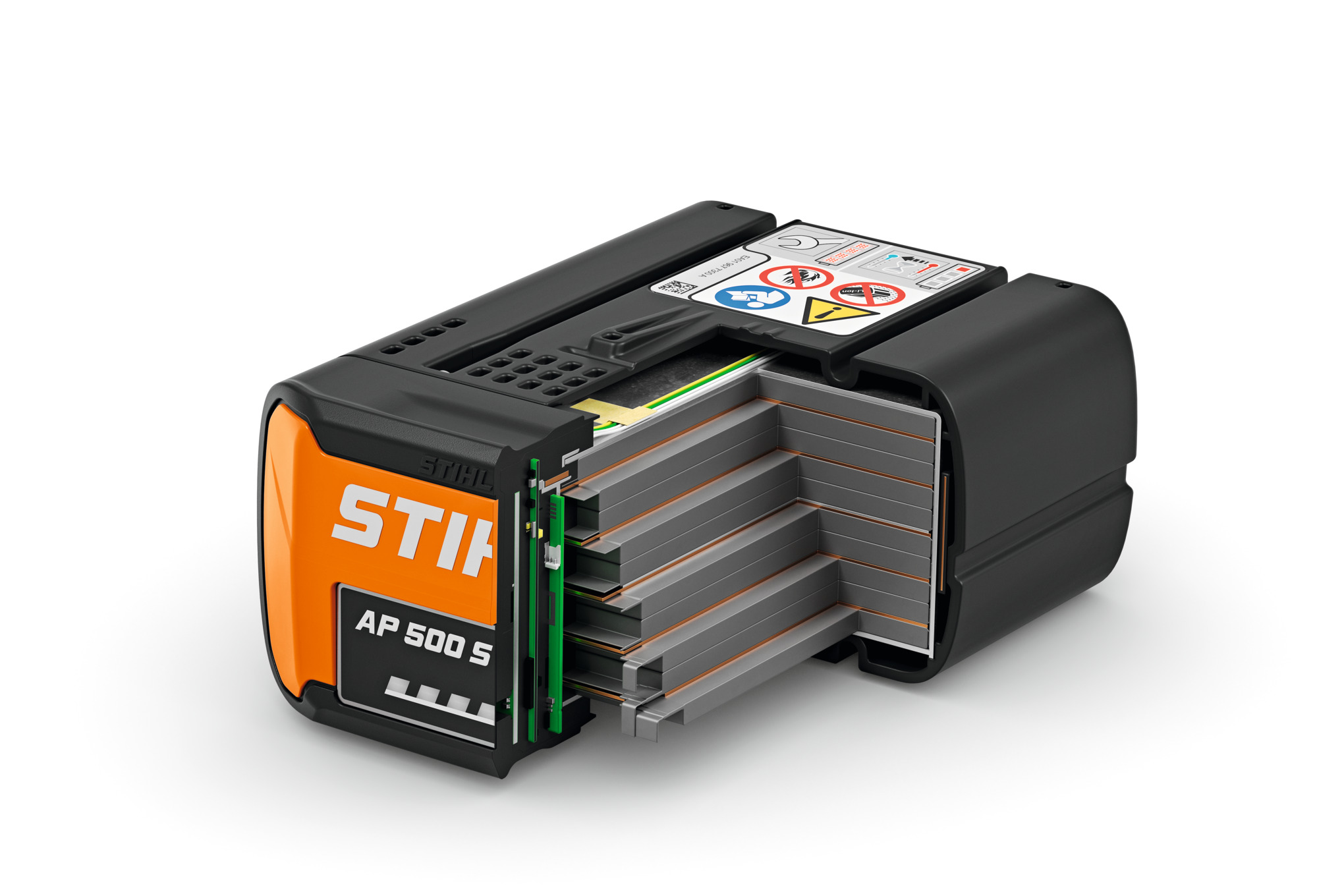

The POWER BOOST function of the STIHL AP 500 S battery in combination with a suitable STIHL power tool enables you to temporarily achieve peak power of up to 3.5 kW. Thanks to power laminate technology, the STIHL AP 500 S battery offers you twice the number of possible charging cycles compared to previous STIHL batteries.
Thanks to the integrated Bluetooth® interface, you can link the STIHL AP 500 S battery to STIHL connected and record and save central battery data there. Using STIHL connected enables diverse possibilities, for example accessing data such as battery status, the number of charging cycles and the option to set the charging speed. In addition, it means you can locate and identify individual batteries which are part of the STIHL connected system. You can use a smartphone, for example, to display the last known GPS position of your AP 500 S battery. If all batteries are within Bluetooth® range, for instance at an external work site, they are displayed in the STIHL connected app. You can also check whether all batteries have been properly removed and stored.
STIHL AP batteries with a nominal voltage of 36 V can be charged with any compatible STIHL charger. We recommend using the STIHL AL 500 charger for this battery.
STIHL AP batteries are available with the following energy content capacities:
- AP 200 S with 187 Wh battery power, 1.3 kg weight
- AP 300 S with 281 Wh battery power, 1.8 kg weight
- AP 500 S with 337 Wh battery power, 2.0 kg weight
In our overview of battery life and charging times, you can see how long you can work with your STIHL battery power tool and how long the selected AP battery takes to charge. The overview also shows which AP battery is recommended for your STIHL power tool. For optimum use, please also refer to our device-battery compatibility overview.
The following devices are compatible with full power:
ASA 65, ASA 85
BGA 85, BGA 86, BGA 100, BGA 160, BGA 200, BGA 250, BGA 300
BRA 600
FSA 65, FSA 85, FSA 86, FSA 90, FSA 110, FSA 120, FSA 130, FSA 135, FSA 200, FSA 400
HLA 65, HLA 66, HLA 85, HLA 86, HLA 135
HSA 66, HSA 86, HSA 94, HSA 100, HSA 130, HSA 140, HSA 150
HTA 65, HTA 66, HTA 85, HTA 86, HTA 135, HTA 150, HTA 160
KGA 770
KMA 135, KMA 200
MSA 160, MSA 161 T, MSA 200, MSA 220, MSA 300
REA 100
RMA 443,RMA 353, RMA 353 V, RMA 510, RMA 756, RMA 765
SEA 100
SHA 140
TSA 230, TSA 300
Note: AP 500 S batteries are certified in line with the IPX4 protection class.
