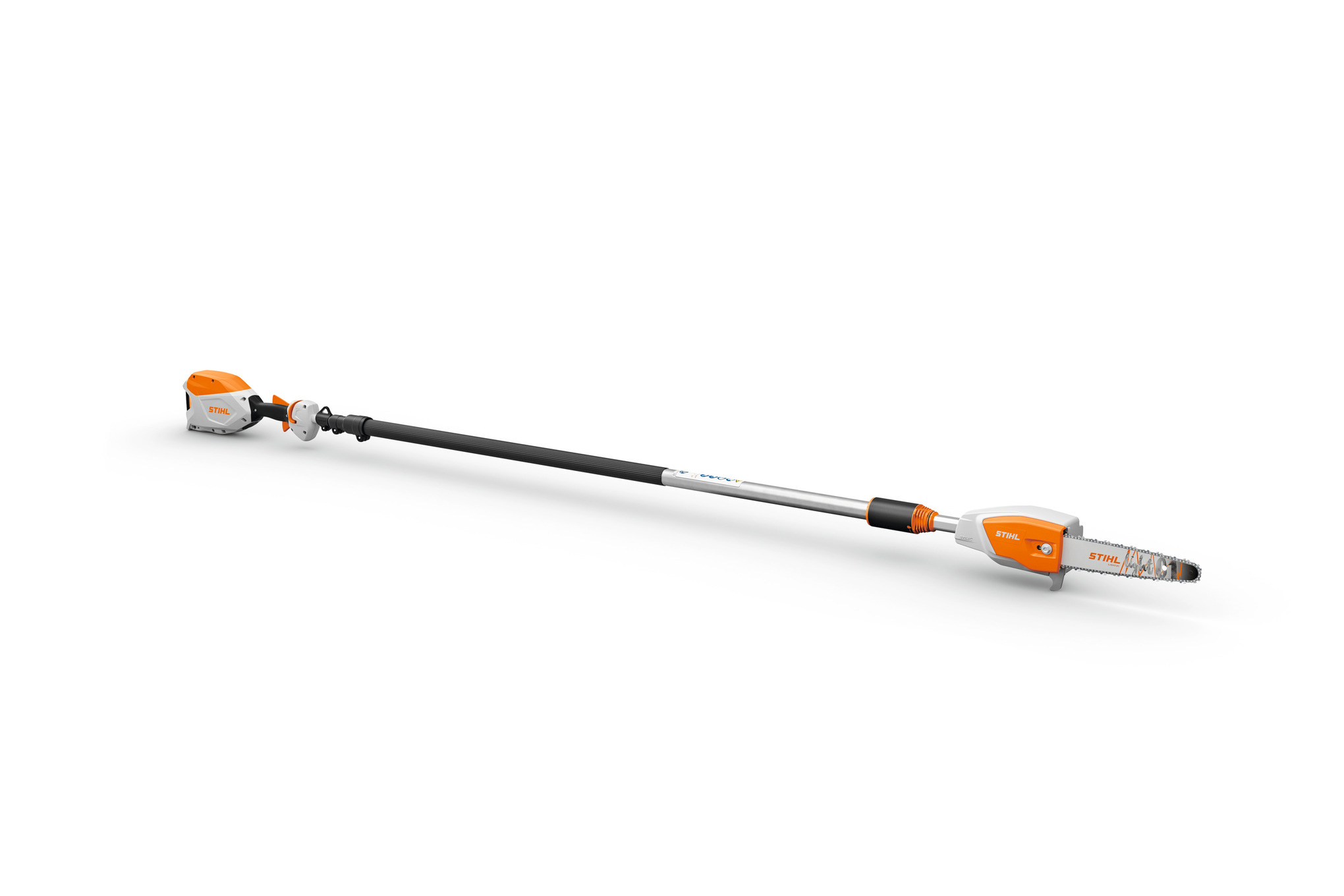

HLA 86 Skin Only
View details about HLA 86 Skin Only.Individual tool without battery and without charger
$829.00
STIHL batteries: battery life and charging times
Learn about the battery life per battery charge for different STIHL battery power tools as well as the charging times for different STIHL batteries.
10.12.2024
Overview battery systems
Battery life per battery charge
STIHL AS/AI/AK
The battery life of a STIHL cordless power tool depends on the battery used, among other things. For example, a STIHL MSA 120 C-BQ cordless chainsaw with the recommended AK 20 battery lasts for up to 40 minutes, and can even achieve a battery life of up to 55 minutes when equipped with an AK 30 battery. You can find a complete list detailing the battery life for each of our STIHL cordless power tools in the tables below. All STIHL cordless power tools in the AS-System, AI-Line and AK-System are ideal for use in your own garden or in garden centres and nurseries.
STIHL AP System
The particularly powerful STIHL battery power tools in the AP System impress with even more endurance and power. The battery life of these battery tools is suitable for professional use in landscaping, garden care and tree maintenance. The following tables show the battery life of your STIHL AP System battery tool depending on the battery used.
Hedge trimmers & long-reach hedge trimmers
STIHL AS System, AI Line and AK System
Battery life per battery charge¹
|
AS 2 (28 Wh battery power2) |
Integrated battery | AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 S (180 Wh battery power2) |
|---|---|---|---|---|---|
| STIHL HSA 26 | 110 min3 | - | - | - | - |
| STIHL HSA 30 | 50 min3 | - | - | - | - |
| STIHL HSA 40 | 80 min4 | - | - | - | - |
| STIHL HSA 45 | - | 40 min3 | - | - | - |
| STIHL HSA 50 | - | - | 50 min3 | 100 min | 130 min |
| STIHL HSA 56 | - | - | 50 min3 | 100 min | 120 min |
| STIHL HSA 60 | - | - | 70 min3 | 140 min | 175 min |
| STIHL HLA 56 | - | - | 50 min | 100 min3 | 120 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 When using the set with 2 AS batteries
STIHL AP System
Battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1148 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STIHL HSA 66 | 72 min3 | 144 min3 | 180 min | 223 min | 268 min | 450 min | 660 min | 800 min | 715 min | - | 1.040 min | - |
| STIHL HSA 86 | 72 min | 144 min3 | 180 min | 223 min | 268 min | 450 min | 660 min | 800 min | 715 min | - | 1.040 min | - |
| STIHL HSA 100 | 75 min | 150 min3 | 180 min | 225 min | 270 min | 500 min | 730 min | 920 min | 1.135 min | 1.205 min | 1.700 min | 1.810 min |
| STIHL HSA 130 R / HSA 130 T | 54 - 42 min4 | 108 - 84 min4 | 135 - 105 min | 167 - 130 min4 | 200 - 155 min4 | 380 - 320 min4 | 550 - 450 min4 | 700 - 570 min4 | 690 - 565 min4 | 735–600 min4 | 985 - 800 min4 | 1.050 - 85 min4 |
| STIHL HLA 66 | 72 min | 144 min | 180 min | 223 min | 268 min | 450 min | 660 min | 800 min | 715 min | 760 min | 1.040 min | 1.110 min |
| STIHL HLA 86 | 72 min | 144 min | 180 min | 223 min | 268 min | 450 min | 660 min | 800 min | 715 min | 760 min | 1.040 min | 1.110 min |
| STIHL HLA 135 | 32 min | 64 min | 77 min | 95 min | 114 min | 215 min | 310 min | 369 min | 345 min | 370 min | 520 min | 555 min |
| STIHL HLA 135 K | 32 min | 64 min | 77 min | 95 min | 114 min | 215 min | 310 min | 369 min | 345 min | 370 min | 520 min | 555 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Level 1 to Level 3
Garden pruner
STIHL AS System, AI Line and AK System
Battery life per battery charge¹
| AS 2 (28 Wh battery power2) |
Integrated battery | AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 S (180 Wh battery power2) |
|
|---|---|---|---|---|---|
| STIHL GTA 26 (When sawing branches (4 cm Ø) up to ...) |
80 cuts | - | - | - | - |
| STIHL ASA 20 (When cutting branches (25 mm Ø) up to ...) |
2.000 cuts | - | - | - | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.

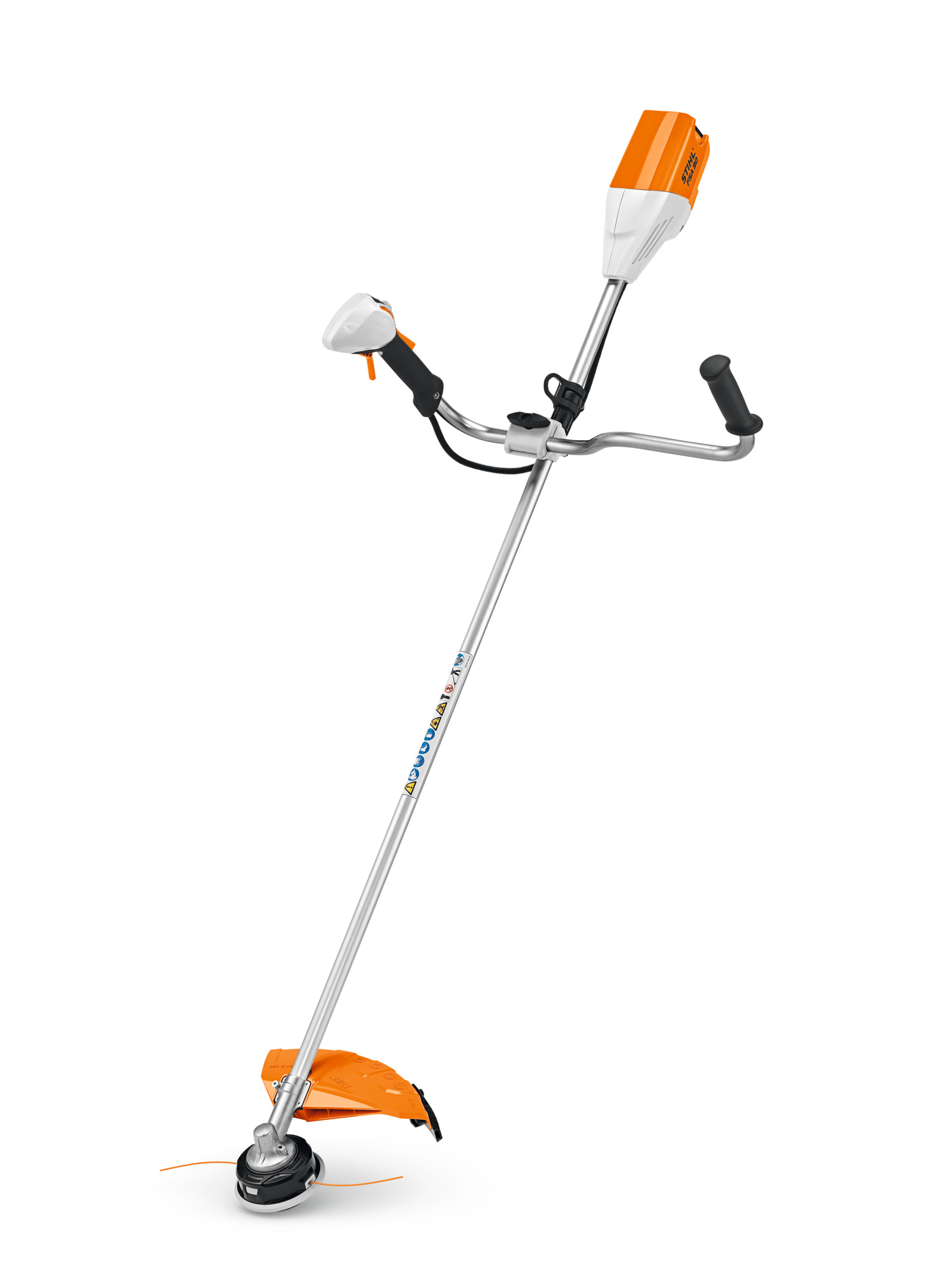

GRASS TRIMMERS & BRUSHCUTTERS
STIHL AS System, AI Line and AK System
Battery life per battery charge¹
| AS 2 (28 Wh battery power2) |
Integrated battery | AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 S (180 Wh battery power2) |
|
|---|---|---|---|---|---|
| STIHL FSA 30 (with PolyCut 3-2) |
19 min4 | - | - | - | - |
| STIHL FSA 45 (with PolyCut 2-2 blades/line) |
- | 20/12 min3 | - | - | - |
| STIHL FSA 56 (with nylon mowing head) |
- | - | 25 min3 | 50 min | 60 min |
| STIHL FSA 57 (with nylon mowing head) |
- | - | 25 min3 | 50 min | 60 min |
| STIHL FSA 60 R (with nylon mowing head) |
- | - | 13 min | 30 min3 | 38 min |
| STIHL FSA 80 R (with nylon mowing head) |
- | - | 12 - 8 min | 25 - 15 min | 30 - 20 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 When using the set with AS battery and recommended set
STIHL AP System
Battery life per battery charge¹:
| AP 100 (94 Wh battery powere2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1.148 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STIHL FSA 65 | 30 min3 | 60 min | 75 min | 93 min | 200 min | 300 min | 380 min | 325 min | - | 495 min | - | |
| STIHL FSA 85 |
18 min | 36 min3 | 45 min | 56 min | 120 min | 180 min | 220 min | 195 min | - | 290 min | - | |
| STIHL FSA 86 R (with nylon mowing head/with PolyCut) |
17 / 30 min | 35 / 60 min3 | 42 / 70 min | 52 / 85 min | 62 / 102 min | 115 / 185 min | 170 / 270 min | - | 185 / 300 min | 200 / 320 min | 280 / 450 min | 290 / 480 min |
| STIHL FSA 90 R (with nylon mowing head) |
12 min | 24 min | 30 min3 | 37 min | 44 min | 80 min | 120 min | 150 min | 130 min | - | 195 min | - |
| STIHL FSA 90 (with grass cutting blade) |
18 min | 36 min | 45 min3 | 56 min | 67 min | 120 min | 180 min | 220 min | 195 min | - | 290 min | - |
| STIHL FSA 120 (with grass cutting blade) |
30 - 20 min5 | 60 - 40 min5 | 80 - 50 min5 | 110 - 60 min5 | 130 - 70 min5 | - | - | - | 380 - 180 min5 | 400 - 210 min5 | 460 - 260 min5 | 490 - 280 min5 |
| STIHL FSA 120 R (with nylon mowing head) |
15 - 10 min5 | 30 - 20 min5 | 40 - 25 min5 | 50 - 30 min5 | 60 - 35 min5 | - | - | - | 200 - 120 min5 | 210 - 130 min5 | 300 - 180 min5 | 320 - 190 min5 |
| STIHL FSA 130 R (with nylon mowing head) |
14 - 10 min4 | 28 - 17 min4 | 36 - 19 min4 | 45 - 25 min4 | 54 - 30 min4 | 100 - 56 min3 4 | 150 - 82 min4 | 190 - 125 min4 | 160 - 90 min3 4 | - | 220 - 130 min4 | - |
| STIHL FSA 135 R (with nylon mowing head) |
14 - 10 min4 | 28 - 17 min6 | 36 - 19 min6 | 45 - 25 min6 | 54 - 30 min6 | 100 - 56 min3 4 | 150 - 82 min4 | 190 - 125 min4 | 160 - 90 min6 | 170 – 96 min6 | 220 - 130 min6 | 234 - 138 min6 |
| STIHL FSA 130 (with grass cutting blade) |
25 - 16 min4 | 50 - 30 min4 | 70 - 40 min4 | 100 - 50 min4 | 120 - 60 min4 | 200 - 100 min4 | 300 - 150 min3 4 | 420 - 215 min4 | 310 - 160 min3 4 | - | 430 - 240 min4 | - |
| STIHL FSA 135 (with grass cutting blade) |
25 - 16 min4 | 50 - 30 min6 | 70 - 40 min6 | 100 - 50 min6 | 120 - 60 min6 | 200 - 100 min4 | 300 - 150 min3 4 | 420 - 215 min4 | 310 - 160 min6 | 330 – 170 min6 | 430 - 240 min6 | 458 - 256 min6 |
| STIHL FSA 200/ FSA 200 R (with grass cutting blade) |
- | 32 - 16 min6 | 38 - 19 min6 | 60 - 30 min6 | 70 - 35 min6 | - | - | - | 210 - 105 min6 | 223 – 112 min6 | 315 - 150 min6 | 335 - 160 min6 |
| STIHL FSA 200/FSA 200 R (with nylon mowing head) |
- | 26 - 10 min6 | 24 - 12 min6 | 32 - 16 min6 | 40 - 20 min6 | - | - | - | 120 - 60 min6 | 127 - 64 min6 | 180 - 90 min6 | 192 - 96 min6 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Level 1 to Level 3/4
5 Level 1 to Level 2
6 Level 1 to Level 3
Chainsaws
STIHL AK System
Battery life per battery charge¹
| AS 2 (28 Wh battery power2) |
Integrated battery | AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 S (180 Wh battery power2) |
|
|---|---|---|---|---|---|
| STIHL MSA 120 C-B | - | - | 18 min4 | 40 min3 | 55 min |
| STIHL MSA 140 C-B | - | - | 18 min4 | 40 min4 | 45 min3 |
| STIHL MSA 60 C-B | - | - | 18 min | 40 min | 55 min |
| STIHL MSA 70 C-B | - | - | 18 min | 40 min | 45 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Reduced tool performance.
STIHL AP System
Battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1.148 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STIHL MSA 160 C-B | - | 42 min3 | 50 min | 62 min | 74 min | 125 min | 180 min | 230 min | 195 min | - | 300 min | - |
| STIHL MSA 200 C-B | - | 42 min4 | 40 min3 | 50 min | 60 min | 110 min | 160 min | 200 min | 175 min | - | 260 min | - |

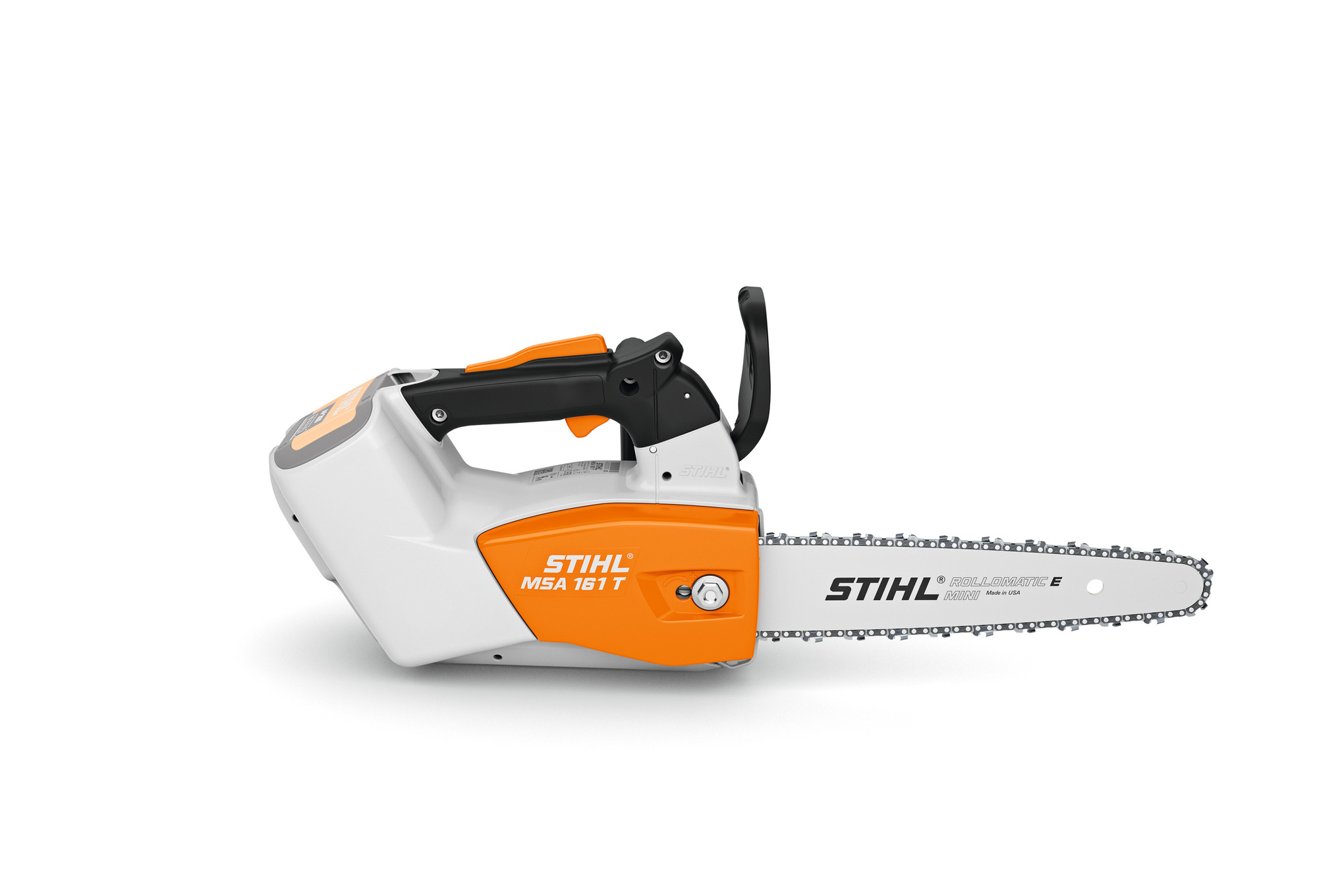

| STIHL MSA 161 T | - | 42 min3 | 50 min3 | 62 min | 74 min | 125 min | 180 min | 230 min | 195 min | - | 300 min | - |
| STIHL MSA 220 C-B | - | 32 min4 | 35 min4 | 37 min3 | 44 min | 110 min | 160 min | 200 min | 201 min | - | 281 min | - |
| STIHL MSA 220 T/MSA 220 TC-O | - | 16 min4 | 25 min4 | 29 min3 | 34 min | - | - | - | 109 min | - | 174 min | - |
| STIHL MSA 300 / 300 C-O | - | - | - | - | 44 - 20 min | - | - | - | - | - | - | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Reduced tool performance

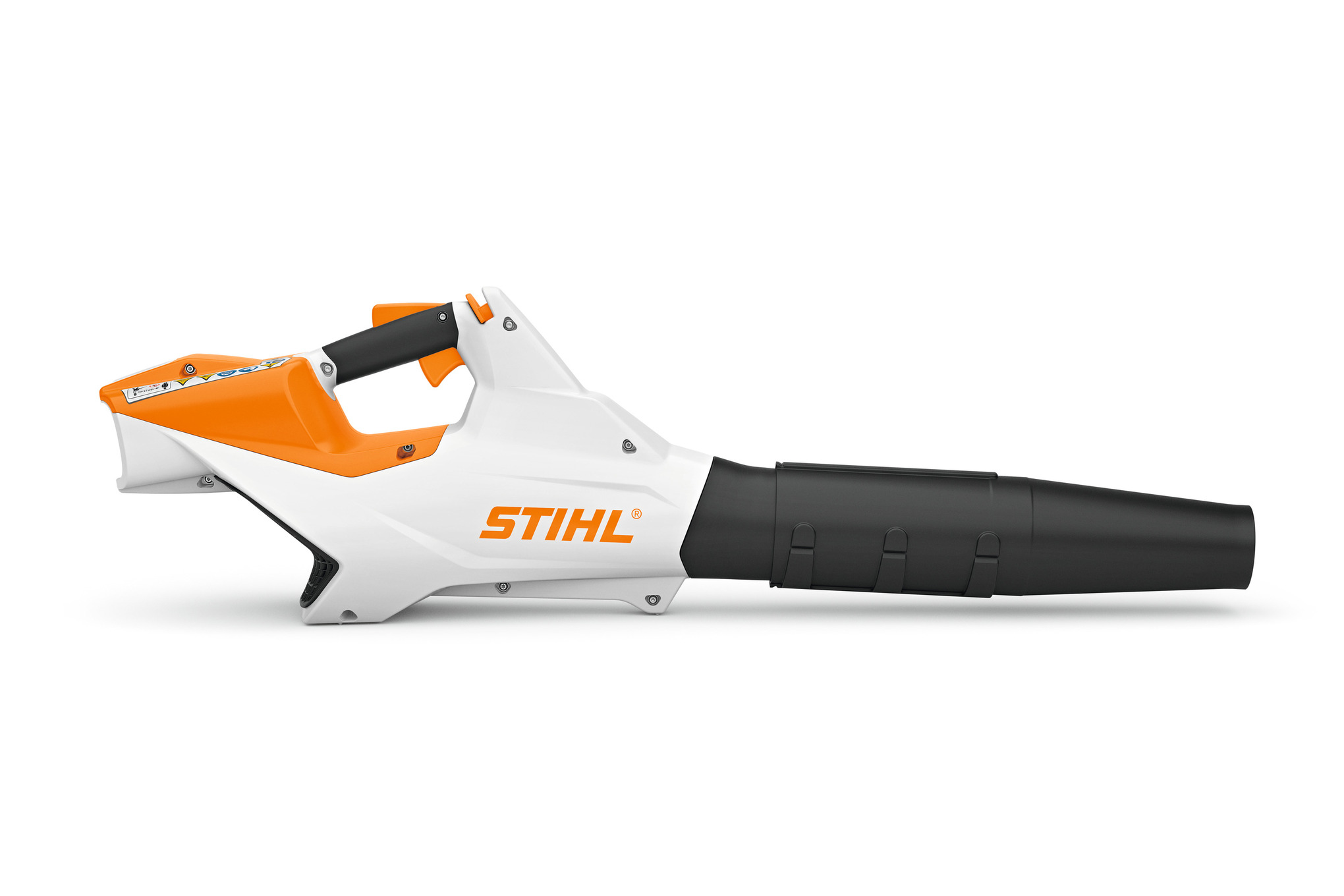

blowers & vacuum shredders
STIHL AS System, AI Line and AK System
Battery life per battery charge (up to ... min)¹:
| AS 2 (28 Wh battery power2) |
Integrated battery | AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 S (180 Wh battery power2) |
|
|---|---|---|---|---|---|
| STIHL BGA 30 | 25 - 8 min | - | - | - | - |
| STIHL BGA 45 | - | 10 min | - | - | - |
| STIHL BGA 56 | - | - | 13 min | 25 min | 30 min |
| STIHL BGA 57 | - | - | 10 min | 22 min3 | 27 min |
| STIHL BGA 60 | - | - | 50 - 9 min4 | 105 - 13 min4 | 130 - 16 min3 4 |
| STIHL SHA 56 | - | - | 12 min | 25 min3 | 30 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery
4 Continuous adjustment of power minimum - maximum
STIHL AP System
Battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1.148 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STIHL BGA 86 | 35 - 11 min5 | 105 - 18 min5 | 120 - 21 min3 5 | 150 - 26 min5 | 175 - 31 min5 | 330 - 57 min | 450 - 84 min | 580 - 105 min | 565 - 90 min5 | 580 - 95 min5 | 840 - 140 min5 | 910 - 148 min5 |
| STIHL BGA 100 | 32 - 8 min4 | 66, 28, 17, 12 min4 | 83, 35, 21, 16 min4 | 103, 44, 26, 20 min4 | 123, 52, 31, 24 min4 | 225 - 45 min4 | 300 - 60 min4 | 395 - 75 min3 4 | 375, 160, 100, 75 min4 | 400, 170, 105, 80 min4 | 555, 225, 140, 105 min3 4 | 595, 240, 150, 110 min4 |
| STIHL BGA 200 | 24 - 6 min4 | 49, 21, 11, 7 min4 | 78 - 12 min4 | 95, 38, 20, 14 min4 | 114, 45, 24, 17 min4 | 212 - 32 min4 | 295 - 43 min4 | 376 - 60 min3 4 | 315, 146, 76, 53 min4 | 335, 155, 80, 55 min4 | 500, 220, 117, 85 min3 4 | 535, 235, 125, 90 min4 |
| STIHL BGA 300 | - | 16, 13, 13, 13 min4 | 20, 15, 12, 11 min | 25, 18, 14, 10 min4 | 29, 21, 17, 12 min4 | - | - | - | 97, 72, 57, 48 min4 | 105, 75, 60, 50 min4 | 140, 105, 83, 61 min3 4 | 150, 110, 90, 65 min4 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Level 1 - Level 3/Boost
5 Continuous adjustment of power minimum - maximum
6 Boost / normal
Lawn mowers
STIHL AK System
Maximum battery ranges¹
| AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 S (180 Wh battery power2) |
|
|---|---|---|---|
| STIHL RMA 235 | 150 m2 | 300 m2 | 400 m2 |
| STIHL RMA 239 | 120 m2 | 250 m2 | 330 m2 |
| STIHL RMA 339 | 120 m2 | 250 m2 | 330 m2 |
| STIHL RMA 460 | - | 205 m2 | 265 m2 |
| STIHL RMA 460 V | - | 170 m2 | 222 m2 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
STIHL AP System
Maximum battery ranges¹
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1.148 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STIHL RMA 443 C |
180 m24 | 300 m23 | 450 m2 | 560 m2 | 650 m2 | - | - | - | - | - | - | |
| STIHL RMA 510 | - | 230 m2 | 280 m23 | 336 m2 | 440 m2 | - | - | - | - | - | - | - |
| STIHL RMA 510 V | - | 196 m2 | 238 m23 | 286 m2 | 343 m2 | - | - | - | - | - | - | - |
| STIHL RMA 765 V |
- | - | 300 m2 | 400 m2 | 480 m2 | - | - | - | 2,050 m2 | 2,100 m2 | 3,100 m23 | 3,130 m2 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Reduced tool performance
LAWN SCARIFIER
STIHL AK System
Maximum battery ranges¹
| AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 S (180 Wh battery power2) |
|
|---|---|---|---|
| STIHL RLA 240 | 96 m24 | 190 m2 | 250 m23 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Reduced tool performance
Pole prunerS
STIHL AK System
Battery life per battery charge¹:
| AK 10 (94 Wh battery power2) |
AK 20 (187 Wh battery power2) |
AK 30 S (227 Wh battery power2) |
|
|---|---|---|---|
| STIHL HTA 50 |
25 min1 | 45 min1 | 60 min1 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Reduced tool performance
STIHL AP System
Battery life per battery charge¹:
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1.148 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STIHL HTA 66 |
18 min4 | 42 min3 | 55 min | 68 min | 82 min | 125 min | 175 min | 210 min | 210 min | 222 min | 300 min | 318 min |
| STIHL HTA 86 | 18 min4 | 42 min3 | 55 min | 68 min | 82 min | 125 min | 180 min | 210 min | 210 min | 222 min | 300 min | 318 min |
| STIHL HTA 135 | 18 min | 36 min | 56 min | 70 min3 | 54 min | 95 min | 130 min | - | 262 min | 277 min | 240 min | 254 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Reduced tool performance
KombiSystem & MultiSystem
STIHL AP System
Battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1.148 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STIHL KMA 130 R (FS-KM mowing head) |
14 - 7 min4 | 28 - 14 min4 | 36 - 17 min4 | 45- 22 min | 54 - 26 min4 | 100 - 50 min3 4 | 150 - 70 min4 | 193 - 92 min4 | 160- 80 min3 4 |
- | 200 - 115 min4 | - |
| STIHL KMA 135 R (FS-KM mowing head) |
- | 28 - 14 min4 | 33 - 17 min4 | 45- 22 min3 4 | 54 - 26 min4 | 100 - 50 min3 4 | 150 - 70 min4 | 193 - 92 min4 | 160- 80 min4 |
170 -85 min6 | 200 - 115 min4 | 213–122 min6 |
| STIHL KMA 130 R (FS-KM grass-cutting blade) |
25 - 16 min4 | 50 - 30 min4 | 70 - 40 min4 | 100 - 50 min3 4 | 120 - 60 min4 | 200 - 100 min3 4 | 300 - 150 min4 | 368 - 19 1min4 | 310 - 160 min3 4 | 325–170 min6 | 430 - 240 min4 | 450–250 min6 |
| STIHL KMA 135 R (FS-KM grass-cutting blade) |
- | 50 - 30 min4 | 60–36 min4 | 100 - 50 min3 4 | 120 - 60 min4 | 200 - 100 min3 4 | 300 - 150 min4 | 368 - 191 min4 | 310 - 160 min4 | - | 430 - 240 min4 | - |
| STIHL KMA 130 R (HL-KM 145° long-reach hedge trimmer) |
62 - 41 min4 | 123 - 81 min4 | 185 - 123 min4 | 229 - 152 min4 | 275 - 182 min4 | 501 - 332 min3 4 | 733 - 486 min4 | 918 - 610 min4 | 810 - 540 min3 4 | - | 1150 - 790 min4 | - |
| STIHL KMA 135 R (HL-KM 145° long-reach hedge trimmer) |
62 - 41 min4 | 123 - 81 min4 | 185 - 123 min4 | 229 - 152 min4 | 275 - 182 min4 | 501 - 332 min3 4 | 733 - 486 min4 | 918 - 610 min4 | 810 - 540 min3 4 | - | 1150 - 790 min4 | - |
| STIHL KMA 130 R (FH-KM 145° scrub cutter) |
62 - 41 min4 | 123 - 81 min4 | 185 - 123 min4 | 229 - 152 min4 | 275 - 182 min4 | 501 - 332 min3 4 | 733 - 486 min4 | 918 - 610 min4 | 810 - 540 min3 4 | - | 1150 - 790 min4 | - |
| STIHL KMA 135 R (FH-KM 145° scrub cutter) |
62 - 41 min4 | 123 - 81 min4 | 185 - 123 min4 | 229 - 152 min4 | 275 - 182 min4 | 501 - 332 min3 4 | 733 - 486 min4 | 918 - 610 min4 | 810 - 540 min3 4 | - | 1150 - 790 min4 | - |
| STIHL KMA 130 R (BG-KM blower) |
14 - 6 min4 | 26 - 10 min4 | 39 - 15 min4 | 48 - 19 min4 | 58 - 23 min4 | 104 - 39 min3 4 | 153 - 57 min4 | 191 - 72 min4 | 170 - 60 min3 4 | - | 245 - 90 min4 | - |
| STIHL KMA 135 R (BG-KM blower) |
14 - 6 min4 | 26 - 10 min4 | 39 - 15 min4 | 48 - 19 min4 | 58 - 23 min4 | 104 - 39 min3 4 | 153 - 57 min4 | 191 - 72 min4 | 170 - 60 min3 4 | - | 245 - 90 min4 | - |
| STIHL KMA 130 R (HT-KM pole pruner) |
22 - 10 min4 | 42 - 19 min4 | 63 - 29 min4 | 78 - 36 min4 | 94 - 43 min4 | 171 - 77 min3 4 | 250 - 112 min4 | 313 - 141 min4 | 275 - 120 min3 4 | - | 320 - 180 min4 | - |
| STIHL KMA 135 R (HT-KM pole pruner) |
22 - 10 min4 | 42 - 19 min4 | 63 - 29 min4 | 78 - 36 min4 | 97 - 43 min4 | 171 - 77 min3 4 | 250 - 112 min4 | 313 - 141 min4 | 275 - 120 min3 4 | - | 320 - 180 min4 | - |
| STIHL KMA 130 R (KW-KM power sweep) |
16 - 13 min4 | 31 - 25 min4 | 46 - 37 min4 | 57 - 46 min4 | 68 - 55 min4 | 125 - 99 min3 4 | 183 - 145 min4 | 230 - 181 min4 | 200 - 160 min3 4 | - | 300 - 230 min4 | - |
| STIHL KMA 135 R (KW-KM power sweep) |
16 - 13 min4 | 31 - 25 min4 | 46 - 37 min4 | 57 - 46 min4 | 68 - 55 min4 | 125 - 99 min3 4 | 183 - 145 min4 | 230 - 181 min4 | 200 - 160 min3 4 | - | 300 - 230 min4 | - |
| STIHL KMA 130 R (KB-KM bristle brush) |
16 - 13 min4 | 31 - 25 min4 | 46 - 37 min4 | 57 - 46 min4 | 68 - 55 min4 | 125 - 99 min3 4 | 183 - 145 min4 | 230 - 181 min4 | 200 - 160 min3 4 | - | 300 - 230 min4 | - |
| STIHL KMA 135 R (KB-KM bristle brush) |
16 - 13 min4 | 31 - 25 min4 | 46 - 37 min4 | 57 - 46 min4 | 68 - 55 min4 | 125 - 99 min3 4 | 183 - 145 min2 | 230 - 181 min4 | 200 - 160 min3 4 | - | 300 - 230 min4 | - |
| STIHL KMA 130 R (BF-KM pick tine) |
16 - 13 min4 | 31 - 25 min4 | 46 - 37 min4 | 57 - 46 min4 | 68 - 55 min4 | 125 - 99 min3 4 | 183 - 145 min4 | 230 - 181 min4 | 200 - 160 min3 4 | - | 300 - 230 min4 | - |
| STIHL KMA 135 R (BF-KM pick tine) |
16 - 13 min4 | 31 - 25 min4 | 46 - 37 min4 | 57 - 46 min4 | 68 - 55 min4 | 125 - 99 min3 4 | 183 - 145 min4 | 230 - 181 min4 | 200 - 160 min3 4 | - | 300 - 230 min4 | - |
| STIHL KMA 130 R (FCB-KM edge trimmer) |
12 - 7 min4 | 23 - 12 min4 | 33 - 18 min4 | 41 - 22 min4 | 49 - 26 min4 | 89 - 47 min3 4 | 131 - 69 min4 | 164 - 86 min4 | 145 - 75 min3 4 | - | 210 - 110 min4 | - |
| STIHL KMA 135 R (FCB-KM edge trimmer) |
12 - 7 min4 | 23 - 12 min4 | 33 - 18 min4 | 41 - 22 min4 | 49 - 26 min4 | 89 - 47 min3 4 | 131 - 69 min4 | 164 - 86 min4 | 145 - 75 min3 4 | - | 210 - 110 min4 | - |
| STIHL KMA 130 R (FCS-KM edge trimmer) |
12 - 7 min4 | 23 - 12 min4 | 33 - 18 min4 | 41 - 22 min4 | 49 - 26 min4 | 89 - 47 min3 4 | 131 - 69 min4 | 164 - 86 min4 | 145 - 75 min3 4 | - | 210 - 110 min4 | - |
| STIHL KMA 135 R (FCS-KM edge trimmer) |
12 - 7 min4 | 23 - 12 min4 | 33 - 18 min4 | 41 - 22 min4 | 49 - 26 min4 | 89 - 47 min3 4 | 131 - 69 min4 | 164 - 86 min4 | 145 - 75 min3 4 | - | 210 - 110 min4 | - |
| STIHL KMA 130 R (FBD-KM bed edge trimmer) |
5 - 5 min4 | 9 - 9 min4 | 14 - 14 min4 | - | - | 38 - 38 min3 4 | 55 - 55 min4 | 69 - 69 min4 | 60 - 60 min3 4 | - | 90 - 90 min4 | - |
| STIHL KMA 135 R (FBD-KM bed edge trimmer) |
5 - 5 min4 | 9 - 9 min4 | 14 - 14 min4 | - | - | 38 - 38 min3 4 | 55 - 55 min4 | 69 - 69 min4 | 60 - 60 min3 4 | - | 90 - 90 min4 | - |
| STIHL KMA 130 R (SP-KM harvester) |
26 - 17 min4 | 51 - 33 min4 | 78 - 50 min4 | 97 - 62 min4 | 116 - 74 min4 | 209 - 134 min3 4 | 305 - 196 min4 | 383 - 246 min4 | 330 - 215 min3 4 | - | 490 - 320 min4 | - |
| STIHL KMA 135 R (SP-KM harvester) |
26 - 17 min4 | 51 - 33 min4 | 78 - 50 min4 | 97 - 62 min4 | 116 - 74 min4 | 209 - 134 min3 4 | 305 - 196 min4 | 383 - 246 min4 | 330 - 215 min3 4 | - | 490 - 320 min4 | - |
| STIHL KMA 130 R (RG-KM rotary cutting head set to level 3) |
28 min | 57 min | 70 min | 85 min | 102 min | 190min3 | 280 min | 350 min | 300 min3 | - | 450 min | - |
| STIHL KMA 135 R (RG-KM rotary cutting head set to level 3) |
28 min | 57 min | 70 min | 85 min | 102 min | 190 min3 | 280 min | 350 min | 300 min3 | - | 450 min | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Level 1 to Level 3/4
5 Level 1 to Level 2
6 Level 1 to Level 3
STIHL AK System
Battery life per battery charge¹:
| AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 S (180 Wh battery power2) |
|
|---|---|---|---|
| STIHL KMA 80 R (FS-KM mowing head) |
10 - 5 min4 | 20 - 10 min4 | 25 - 15 min4 |
| STIHL KMA 80 R (FS-KM grass-cutting blade) |
20 - 10 min4 | 40 - 20 min4 | 50 - 30 min4 |
| STIHL KMA 80 R (HL-KM 145° long-reach hedge trimmer) |
50 - 35 min4 | 100 - 70 min4 | 130 - 90 min4 |
| STIHL KMA 80 R (FH-KM 145° scrub cutter) |
50 - 35 min4 | 100 - 70 min4 | 130 - 90 min4 |
| STIHL KMA 80 R (BG-KM blower) |
10 - 5 min4 | 20 - 10 min4 | 25 - 15 min4 |
| STIHL KMA 80 R (HT-KM pole pruner) |
20 - 10 min4 | 40 - 20 min4 | 50 - 25 min4 |
| STIHL KMA 80 R (KW-KM power sweep) |
15 - 10 min4 | 30 - 25 min4 | 35 - 30 min4 |
| STIHL KMA 80 R (KB-KM bristle brush) |
15 - 10 min4 | 30 - 25 min4 | 35 - 30 min4 |
| STIHL KMA 80 R (BF-KM pick tine) |
15 - 10 min4 | 30 - 25 min4 | 35 - 30 min4 |
| STIHL KMA 80 R (FCB-KM edge trimmer) |
12 - 8 min4 | 25 - 15 min4 | 30 - 20 min4 |
| STIHL KMA 80 R (FCS-KM edge trimmer) |
12 - 8 min4 | 25 - 15 min4 | 30 - 20 min4 |
| STIHL KMA 80 R (FBD-KM bed edge trimmer) |
5 min4 | 10 min4 | 12 min4 |
| STIHL KMA 80 R (SP-KM harvester) |
20 - 12 min4 | 45 - 25 min4 | 55 - 35 min4 |
| STIHL KMA 80 R (RG-KM rotary cutting head) |
12 - 10 min4 | 23 - 21 min4 | 29 - 26 min4 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Level 1 to Level 3/4
SweepERS
STIHL AP System
Maximum battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1.148 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STIHL KGA 770 | 84 min3 | 168 min3 | 210 min | 260 min | 312 min | - | - | - | - | - | - | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
Cut-off machines
STIHL AP System
Maximum battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1.148 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STIHL TSA 230 | 7 min | 14 min | 18 min3 | 22 min | 26 min | 50 min | 75 min | 95 min | 80 min | - | 125 min | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
Sprayers
STIHL AP System
Maximum battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|
| STIHL SGA 85 | 510 min4 | 1000 min3 | - | - | - | - | - | - | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Reduced tool performance
Pressure Washers
STIHL AP System
Maximum battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 / AP 200 S (187 Wh battery power2) |
AP 200 S (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 2000 L (1.015 Wh battery power2) |
AR 2000 L (1.080 Wh battery power2) |
AR 3000 L (1.520 Wh battery power2) |
AR 3000 L (1.620 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| STIHL REA 100 Plus | 15 - 10 min4 | 30 - 12min4 | 30 - 12 min4 | 30 - 12 min4 | 45 - 14 min3 4 | 50 - 17 min4 | - | - | - | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended battery.
4 Continuous adjustment of power minimum - maximum
Battery charging times
Battery charging times in minutes
The charging times of batteries are not determined solely by their capacity – the charger also has an impact on battery charging time. For example, the charging time for the STIHL AK 10 battery with the AL 101 charger is 95 minutes, while with the AL 300 charger the battery is fully charged in just 45 minutes. The table below shows which charger suits which STIHL battery and indicates the charging time required to reach a battery level of 80% and 100%.
| AL 1 | LK 45 | AL 101 | AL 300 | AL 301 | AL 301-4 | AL 500 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80% | 100% | 80% | 100% | 80% | 100% | 80% | 100% | 80% | 100% | 80% | 100% | 80% | 100% | |
| AS 2 | 60 min | 80 min | - | - | - | - | - | - | - | - | - | - | - | - |
| BGA 45 | - | - | 210 min | 300 min | - | - | - | - | - | - | - | - | - | - |
| HSA 45 | - | - | 145 min | 210 min | - | - | - | - | - | - | - | - | - | - |
| FSA 45 | - | - | 145 min | 210 min | - | - | - | - | - | - | - | - | - | - |
| AK 10 | - | - | - | - | 70 min | 95 min | 30 min | 45 min | 25 min | 40 min | - | - | 30 min | 45 min |
| AK 20 | - | - | - | - | 135 min | 180 min | 35 min | 55 min | 30 min | 50 min | - | - | 30 min | 45 min |
| AK 30 S | - | - | - | - | 160 min | 205 min | 35 min | 60 min | 35 min | 60 min | - | - | 35 min | 50 min |
| AP 1001 | - | - | - | - | 75 min | 100 min | 30 min | 45 min | 30 min | 45 min | 30 min | 45 min | 30 min | 45 min |
| AP 200/AP 200 S | - | - | - | - | 150 min | 200 min | 40 min | 55 min | 40 min | 55 min | 40 min | 55 min | 30 min | 45 min |
| AP 300 | - | - | - | - | 190 min | 250 min | 45 min | 60 min | 50 min | 75 min | 50 min | 75 min | 25 min | 35 min |

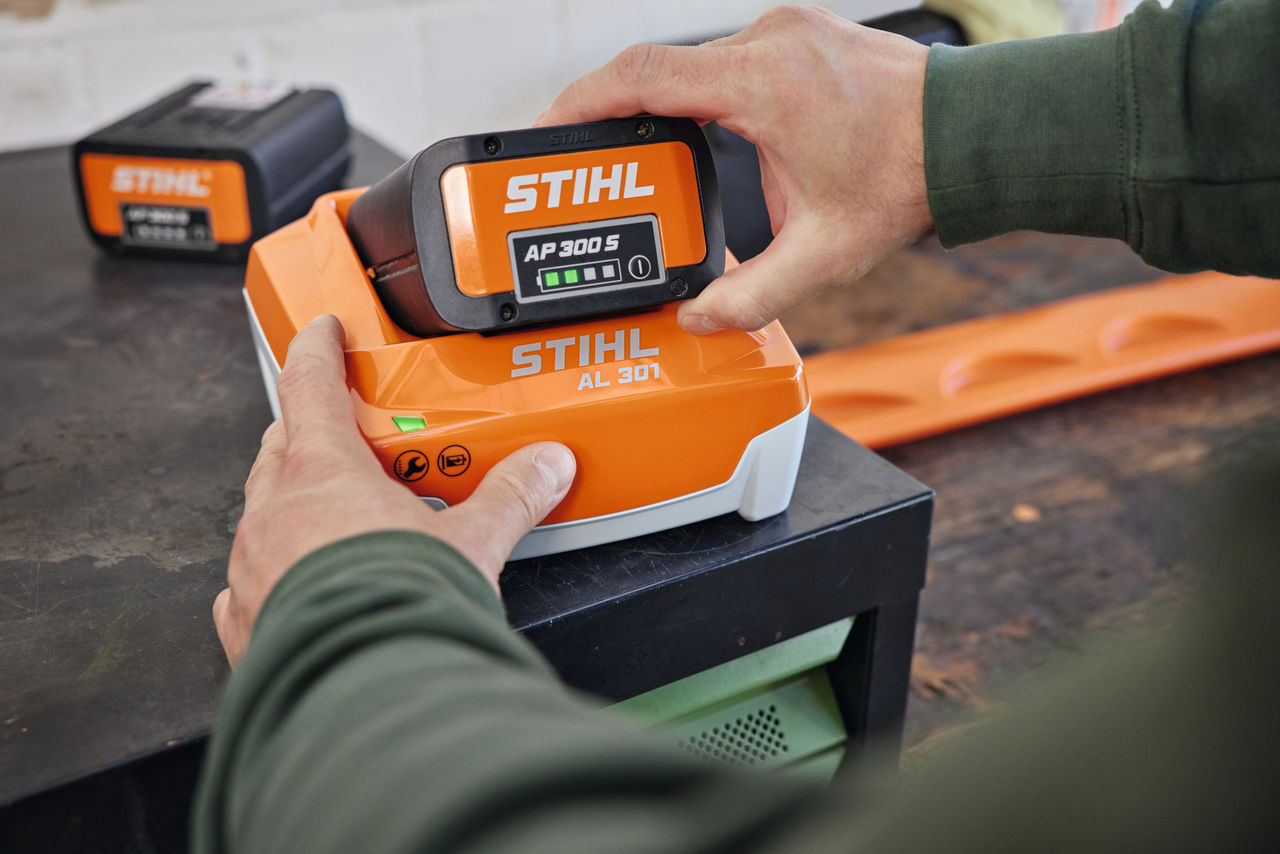

| AP 300 S | - | - | - | - | 230 min | 300 min | 55 min | 70 min | 55 min | 80 min | 55 min | 80 min | 30 min | 45 min |
| AP 500 S | - | - | - | - | 280 min | 355 min | 70 min | 90 min | 70 min | 90 min | 70 min | 90 min | 40 min | 55 min |
| AR 10001 | - | - | - | - | - | - | 130 min | 160 min | - | - | - | - | 90 min | 120 min |
| AR 20001 | - | - | - | - | - | - | 190 min | 215 min | - | - | - | - | 100 min | 130 min |
| AR 30001 | - | - | - | - | - | - | 220 min | 265 min | - | - | - | - | 120 min | 160 min |
| AR 2000 L | - | - | - | - | - | - | 210 min | 270 min | 220 min | 290 min | 220 min | 290 min | 110 min | 150 min |
| AR 3000 L | - | - | - | - | - | - | 310 min | 400 min | 330 min | 430 min | 330 min | 430 min | 170 min | 220 min |
1 no longer in the current delivery program
