EASY ADJUSTMENT OF POWER TOOL PERFORMANCE. Quickly and conveniently adjust the speed of your power tool to the respective work situation. Doing so reduces energy consumption at low speeds, and in this way extends the battery runtime. The practical control handle with speed control allows you to make the relevant adjustment without having to change your grip or pause work.

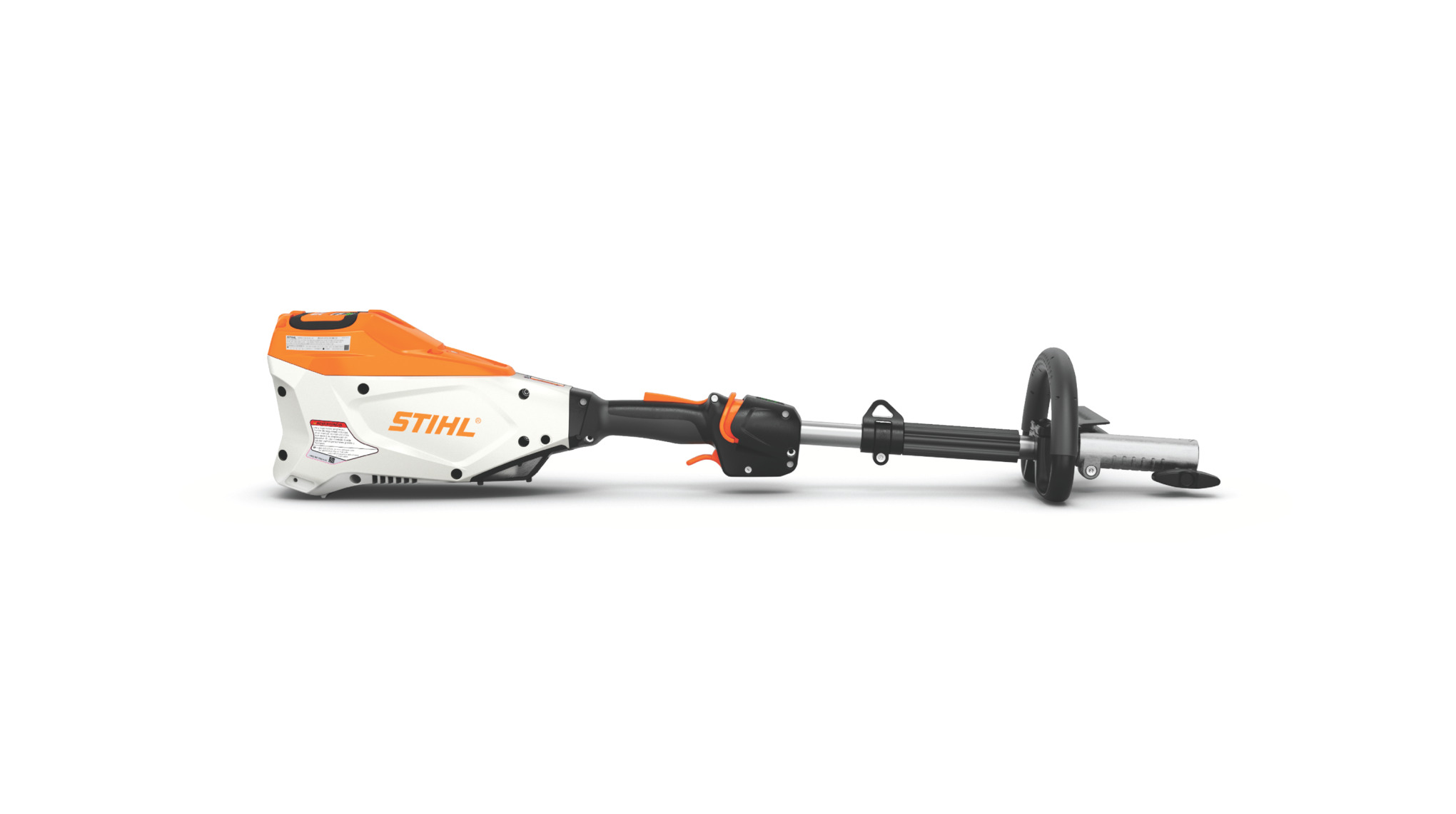

KMA 135 R Battery KombiSystem AP System
$649.00*
All prices include 10% GST.
Select item
Available to buy from STIHL Approved Dealers Click on the button above to find your nearest one
- Product Details
- Powerful battery KombiEngine for professional applications
- Individual tool without battery and without charger
- Can be combined with all KombiTools
- Durable air filter with metal mesh for optimum engine cooling
- Can be used in any weather thanks to tested splash protection
- Prepared for use with a Smart Connector 2 A
- Can be combined with all KombiTools
- Owners manuals
Find here the owners manual for
Technical details
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Cordless power system | AP |
| Device weight without battery | 3.4 kg 1) |
| Length to coupling sleeve | 96 cm |
Features
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.
FOR SAFE WORK IN SMALL SPACES. The loop handle ensures good manoeuvrability of your power tool, even in confined spaces. The barrier bar protects you by ensuring your feet and legs cannot come too close to blades or mowing heads during work.
DIRECT POWER SUPPLY TO THE POWER TOOL. With this power tool, you can insert the required battery from the STIHL AP-System directly into the engine housing. This increases your mobility and flexibility when working.
OPTIMAL ENGINE COOLING. The air filter with fine metal mesh cleans the air and in this way ensures optimum engine cooling. As it is itself easy to clean, it also offers a long service life.
LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.
Versatile battery motor for every garden project
If you are a professional working in garden and landscape maintenance or if there are many different tasks to complete as a local authority and you want to work as flexibly as possible, the STIHL KMA 135 R is ideal. This battery-powered KombiEngine can be used with all STIHL KombiTools, so you only need to connect the right tool to the coupling piece as required.
The speed of the powerful EC engine can be seamlessly adjusted on the control handle. You can set one of three preset speed levels, which you can use as an energy-saving mode. As the engine of the STIHL KMA 135 R also runs very quietly, you can also work in noise-sensitive areas and without ear protection. To increase the service life of the engine, it is equipped with an air filter with metal grille. This ensures optimum cooling and is also easy to clean. The STIHL KMA 135 R KombiEngine is equipped with a loop handle with barrier bar for a high degree of freedom of movement, even in confined spaces. The barrier bar ensures that your feet and legs cannot get too close to the tool.
All battery power tools within the STIHL AP System have been designed for professional users and daily work even ander adverse weather conditions such as rain.
Our overview of STIHL battery life and charging times shows how long you can work with your STIHL KMA 135 R battery KombiEngine and how long the battery used takes to charge.
| View Kombi Accessories | AP 200 / AP 200 S | AP 300 S | AP 500 S | AR 2000 L | AR 3000 L |
| FS-KM mowing head | 28 - 14 min | 45- 22 min | 54 - 26 min | 160- 80 min | 200 - 115 min |
| FS-KM grass-cutting blade | 50 - 30 min | 100 - 50 min | 120 - 60 min | 310 - 160 min | 430 - 240 min |
| HL-KM 145° long-reach hedge trimmer | 123 - 81 min | 229 - 152 min | 275 - 182 min | 810 - 540 min | 1150 - 790 min |
| FH-KM 145° scrub cutter | 123 - 81 min | 229 - 152 min | 275 - 182 min | 810 - 540 min | 1150 - 790 min |
| BG-KM blower | 26 - 10 min | 48 - 19 min | 58 - 23 min | 170 - 60 min | 245 - 90 min |
| HT-KM pole pruner | 42 - 19 min | 78 - 36 min | 97 - 43 min | 275 - 120 min | 320 - 180 min |
| KW-KM power sweep | 31 - 25 min | 57 - 46 min | 68 - 55 min | 200 - 160 min | 300 - 230 min |
| KB-KM bristle brush | 31 - 25 min | 57 - 46 min | 68 - 55 min | 200 - 160 min | 300 - 230 min |
| BF-KM pick tine | 31 - 25 min | 57 - 46 min | 68 - 55 min | 200 - 160 min | 300 - 230 min |
| FCB-KM edge trimmer | 23 - 12 min | 41 - 22 min | 49 - 26 min | 145 - 75 min | 210 - 110 min |
| FCS-KM edge trimmer | 23 - 12 min | 41 - 22 min | 49 - 26 min | 145 - 75 min | 210 - 110 min |
| FBD-KM bed edge trimmer | 9 - 9 min | - | - | 60 - 60 min | 90 - 90 min |
| SP-KM harvester | 51 - 33 min | 97 - 62 min | 116 - 74 min | 330 - 215 min | 490 - 320 min |
| RG-KM rotary cutting head set to level 3 | 57 min | 85 min | 102 min | 300 min | 450 min |
For optimal use, please refer to our battery compatibility overview.
