Rated voltage | 36 V |
Cordless power system | AP |
Device weight without battery | 3.9 kg 1) |
Length to coupling sleeve | 94 cm |
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

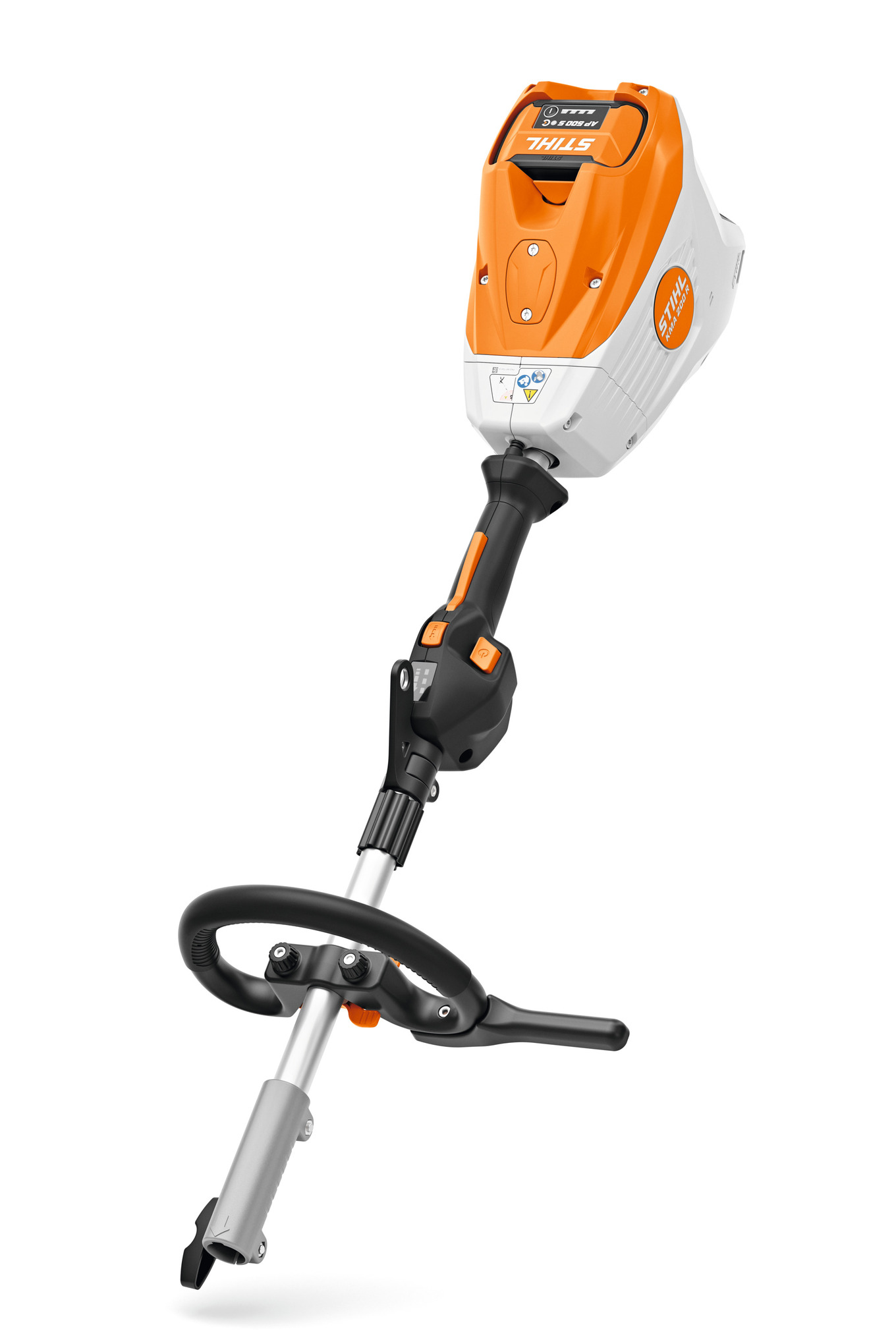

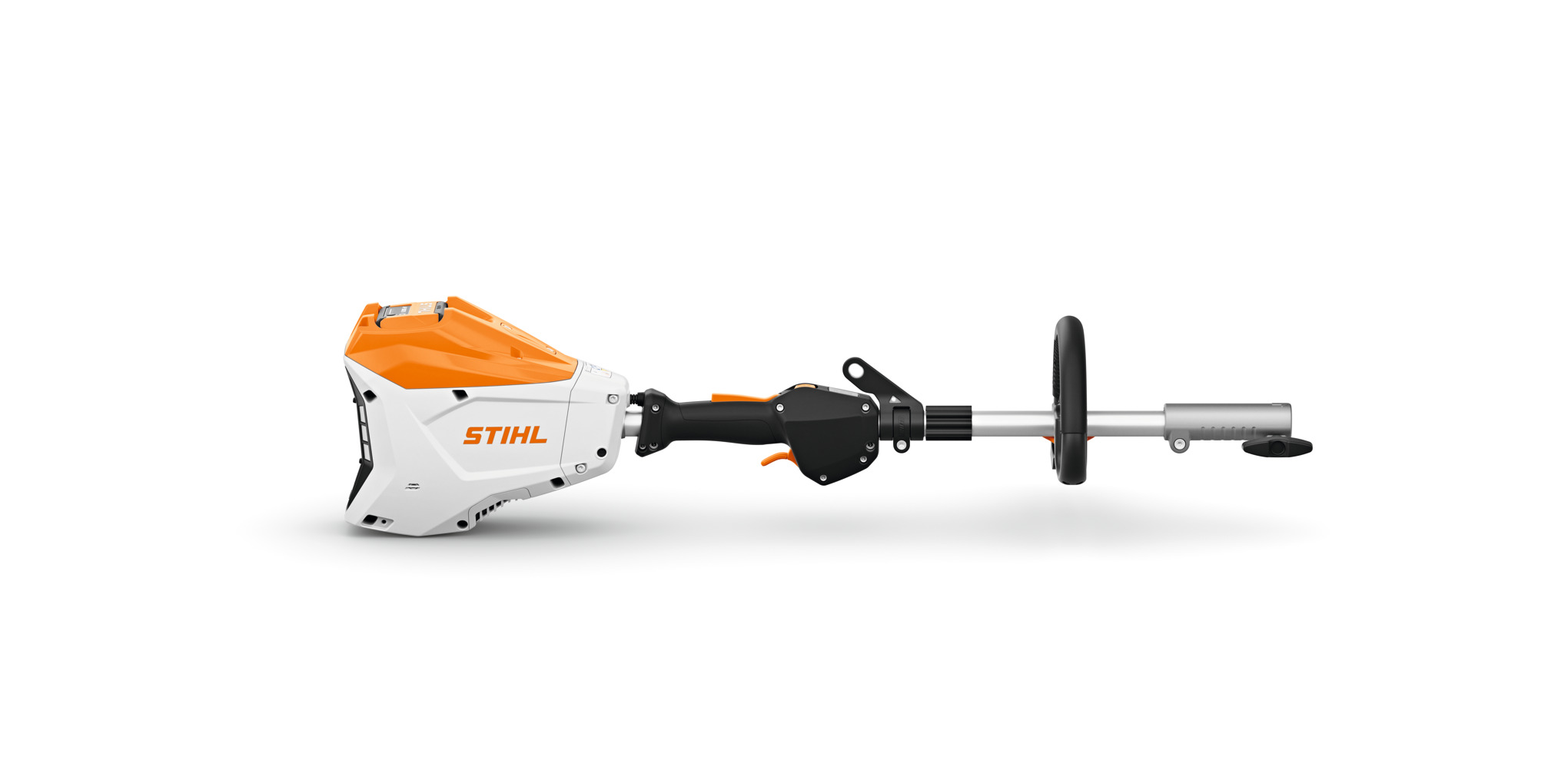

The STIHL KMA 200 R battery KombiEngine can be used with many KombiTools, meaning it can be used efficiently in professional garden and landscape maintenance or for demanding domestic work. The STIHL KMA 200 R impresses with its particularly high power and very high speeds. Benefits that you can clearly feel when mowing with the FS-KM brushcutter, for example. It expands the range of STIHL KombiTools, has a mowing circle of 450 mm and thus supports fast work progress.
The high engine performance and high speeds also increase efficiency when working with other KombiTools. For example, for long-reach hedge trimming with the HL-KM 145 long-reach hedge trimmer, for cleaning surfaces with the BG-KM leaf blower or with the KW-KM power sweeper.
The respective attachment tool from the STIHL KombiSystem can be attached to the shaft without tools in just a few simple steps. The STIHL battery KMA 200 R KombiEngine is equipped with a loop handle with barrier bar for a high degree of freedom of movement – even in confined spaces. Also, to ensure an ergonomic working posture, the handle can be quickly adjusted to your height without the need for tools thanks to the quick clamping system. In addition, the rubberised grip surface ensures a firm grip in all working positions.
Since the particularly powerful EC engine of the STIHL KMA 200 R is very quiet, you can work with most KombiTools, such as the very quiet FS-KM brushcutter, without ear protection and also in noise-sensitive areas such as around schools, hospitals or city parks. For an energy-saving working method adapted to the respective requirements, you can conveniently choose between 3 speed levels with LED display on the ergonomically shaped control handle by pressing a button. This allows you to reduce energy consumption and extend the operating time of the device per battery charge.
The KMA 200 R is designed for use with the optionally available STIHL Smart Connector 2 A. This means that all the advantages of STIHL connected for efficient fleet management are available to you when you need them.
In our overview of battery life and charging times, you can see how long you can work with your STIHL KMA 200 R battery KombiEngine and how long the battery used takes to charge.
AP 200 / AP 200 S | AP 300 S | AP 500 S | AR 2000 L | AR 3000 L | |
FS-KM mowing head | 28 - 14 min | 45- 22 min | 54 - 26 min | 160- 80 min | 200 - 115 min |
FS-KM grass-cutting blade | 50 - 30 min | 100 - 50 min | 120 - 60 min | 310 - 160 min | 430 - 240 min |
HL-KM 145° long-reach hedge trimmer | 123 - 81 min | 229 - 152 min | 275 - 182 min | 810 - 540 min | 1150 - 790 min |
FH-KM 145° scrub cutter | 123 - 81 min | 229 - 152 min | 275 - 182 min | 810 - 540 min | 1150 - 790 min |
BG-KM blower | 26 - 10 min | 48 - 19 min | 58 - 23 min | 170 - 60 min | 245 - 90 min |
HT-KM pole pruner | 42 - 19 min | 78 - 36 min | 97 - 43 min | 275 - 120 min | 320 - 180 min |
KW-KM power sweep | 31 - 25 min | 57 - 46 min | 68 - 55 min | 200 - 160 min | 300 - 230 min |
KB-KM bristle brush | 31 - 25 min | 57 - 46 min | 68 - 55 min | 200 - 160 min | 300 - 230 min |
BF-KM pick tine | 31 - 25 min | 57 - 46 min | 68 - 55 min | 200 - 160 min | 300 - 230 min |
FCB-KM edge trimmer | 23 - 12 min | 41 - 22 min | 49 - 26 min | 145 - 75 min | 210 - 110 min |
FCS-KM edge trimmer | 23 - 12 min | 41 - 22 min | 49 - 26 min | 145 - 75 min | 210 - 110 min |
FBD-KM bed edge trimmer | 9 - 9 min | - | - | 60 - 60 min | 90 - 90 min |
SP-KM harvester | 51 - 33 min | 97 - 62 min | 116 - 74 min | 330 - 215 min | 490 - 320 min |
RG-KM rotary cutting head set to level 3 | 57 min | 85 min | 102 min | 300 min | 450 min |
All battery power tools within the STIHL AP System have been designed for regular professional use, even in adverse weather conditions. For this reason, they are certified as splashproof. The effectiveness of this is also verified through demanding internal tests. The splashwater test is aligned with the IPX4 standard, among others.
